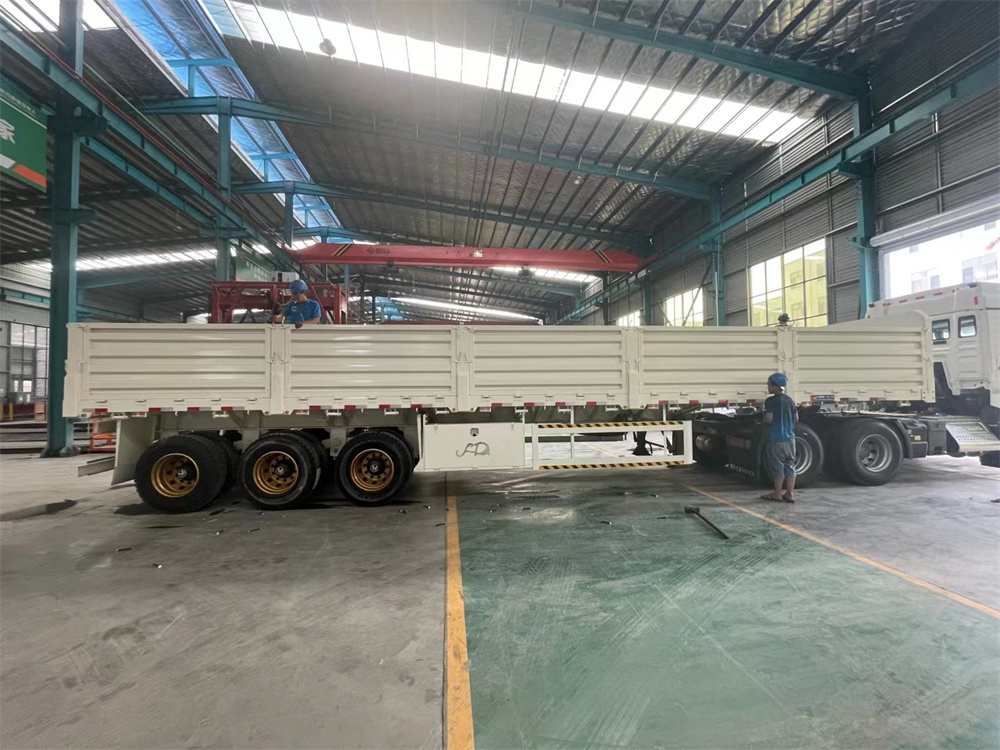

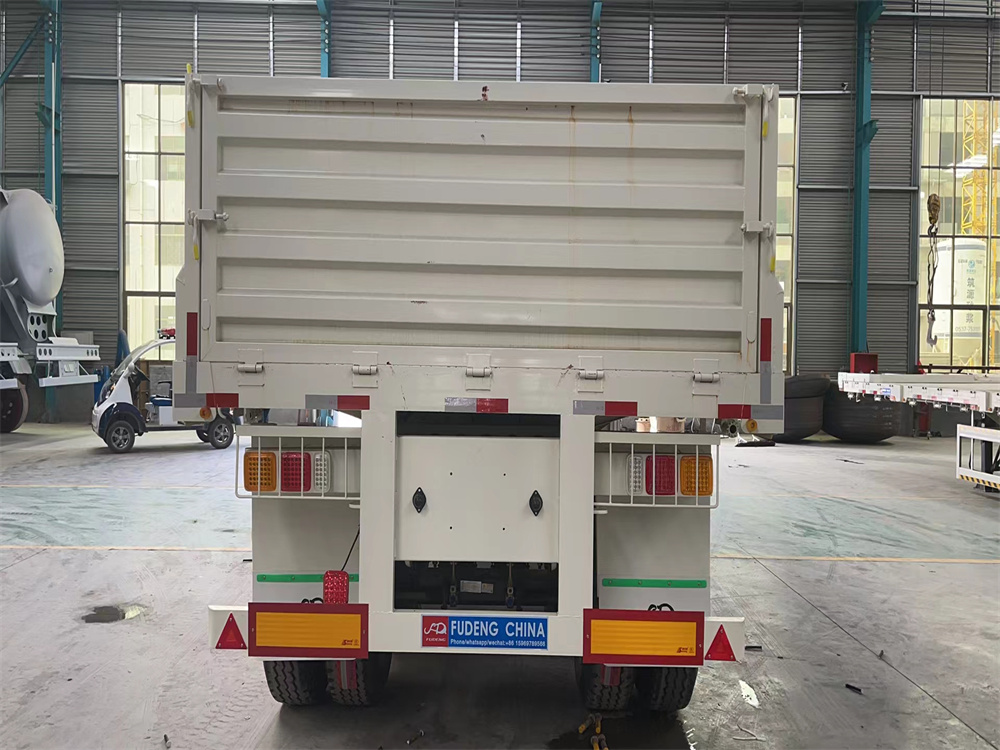

3Axles Dropside Trailer Description
3Axles Dropside Trailer is a semi-trailer with a fence structure. It has a wide range of uses, mainly suitable for medium and long-distance transportation of medium and heavy-duty and bulk goods. It has strong applicability and has become the first choice for medium and long-distance freight vehicles.
The dropside trailer is made of high-quality steel, advanced technology, and strict production. The structure is reasonable, the performance is reliable, the operation is simple, and the appearance is beautiful. The frames of series semi-trailers are all beam-through structures, and the longitudinal beams are straight or gooseneck. The web height ranges from 400mm to 550mm by welding with manganese plates, the longitudinal beams are welded by automatic submerged welding, the frame is shot blasted, and the beam penetrates the longitudinal beams and welds the whole.
The suspension adopts non-independent steel plate stamping rigid suspension, which is made of tandem steel plate springs and suspension supports; the structure is reasonable, with strong rigidity and strength, and is used to support the load and reduce the impact.
#image_234851460 {
width: 100%;
}
#image_1917470827 {
width: 100%;
}
3AXLES SIDEWALL TRAILER SPECIFICATION
| Dimension: | 12500*2550*(1550+100)mm (Customized) |
| Load Capacity: | 30tons/40tons/50tons, etc |
| Main Beam: | High tension carbon steel |
| Axle: | 3 Axles |
| Container Locks | 12units THT Brand Container locks |
| Suspension: | Mechanical or Air Suspension |
| Landing Gear: | JOST |
| Tire: | 12pcs |
| Brake System: | WABCO, ABS Optional |
| Electrial System: | 24V; Standard |
| Colour and Marking: | Comply with the customer’s requirement |
