Suitable for transporting coal,rock,and other minerals,with a carrying capacity of 80-100 tons. Designed and customized based on your specific needs.
Place of Origin: China
Brand Name: Honey Badger
Min. Order Qty: 1 Unit
Model: HB-End Dump Semi Trailer
Shipment Term: Container Ship,Bulk Cargo Ship,RORO Ship.
Delivery Period: 15-20 workdays.
| Air Chamber |
8 sets |
|---|---|
| Axle Model/Quantity |
13T*4 sets |
| Bottom Plate Type/Thickness |
Flat plate 3.0mm (Customizable) |
| Brake Valve Specification |
Three-axle synchronization |
| Dimensions of Cargo Box |
8.8m*2.4m*1.5m |
| Hydraulic Cylinder |
200# (Cylinder diameter 200mm) |
| Kingpin |
Approximately 3.5 inches |
| Landing Gear |
Single action, 28T |
| Leaf Spring |
10 pieces, standard type |
| Main Beam |
Vertical plate 10mm, upper wing plate 12mm, lower wing plate 12mm |
| Main Beam Style |
Straight beam |
| Overall Dimensions |
9.5m*2.5m*3.2m |
| Side Beam |
140# Square tube |
| Sideboard Type/Thickness |
Flat plate 2.0mm (Customizable) |
| Suspended Beam |
Mechanical suspension |
| Through Beam |
High-strength bending parts |
| Tires |
12R22.5*16sets |
| Toolbox |
1 standard type |
| Volume |
About 31.5 m³ |
| Type |
Rear Dump Type |
Advantages
1. Efficient Unloading
The dump design allows for quick and convenient unloading of cargo, significantly improving work efficiency, especially when frequent unloading is required.
2. Versatility
Suitable for transporting various materials such as sand, soil, ore, agricultural products, and waste, meeting the needs of different scenarios.
3. Reduced Labor
The hydraulic system enables automatic unloading, reducing dependence on manual labor, lowering labor intensity, and enhancing safety.
4. Increased Productivity
Capable of quickly completing loading and unloading operations, shortening transportation and waiting times, thus increasing overall productivity.
5. Sturdy and Durable
Typically constructed with high-strength steel and wear-resistant materials, able to withstand heavy loads and harsh working environments, extending service life.
6. Ease of Operation
Equipped with advanced hydraulic systems and control devices, making operation more straightforward and precise, reducing the risk of misoperation.
7. Cost Savings
By providing efficient transportation and unloading, dump semi-trailers reduce transportation costs and time, improving economic efficiency.
Applications
1. Construction Projects: Used for transporting sand, gravel, concrete, and earth materials, meeting various material transport needs on construction sites.
2. Mining: Suitable for transporting minerals like ores and coal, capable of operating efficiently in complex mining environments.
3. Agriculture: Used for transporting grains, feed, fertilizer, and other agricultural products, helping farmers improve transport efficiency.
4. Waste Management: In urban and rural waste collection, dump semi-trailers can easily transport and dump garbage, enhancing waste management efficiency.
5. Infrastructure Construction: Suitable for material transport and unloading in infrastructure projects such as highways, railways, and water conservancy.
6. Transporting Bulk Goods: Can be used for transporting timber, scrap metal, and other bulk materials, adapting to various transportation needs.

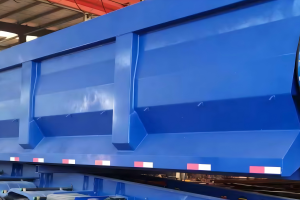

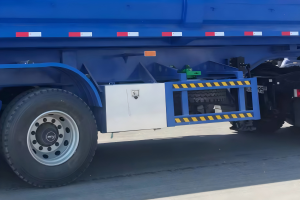

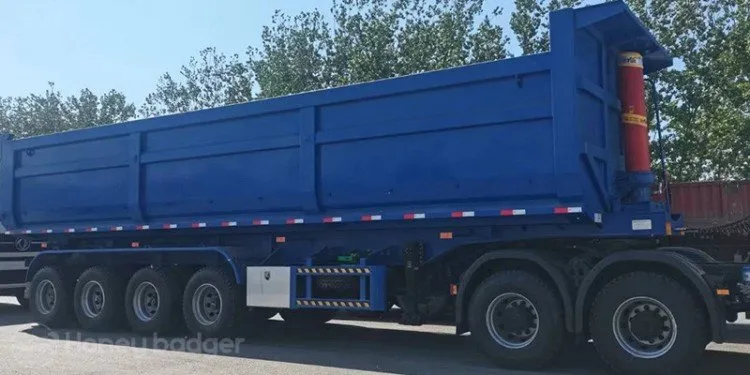

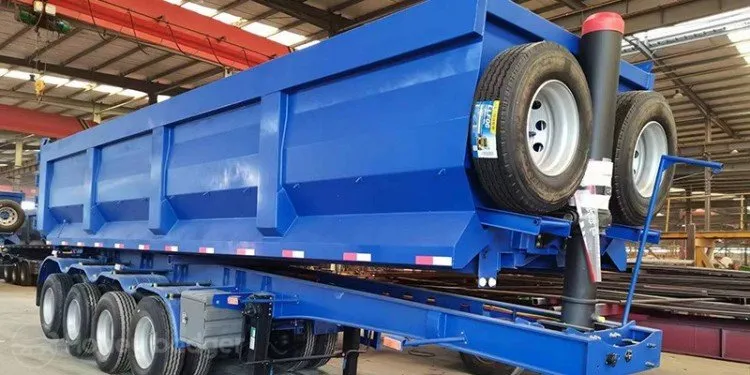

Details
