4 Axle Skeleton Trailer is designed to carry cargo of special size or irregular shape, such as large industrial equipment, extra-long steel, etc. For example, in some large-scale construction projects, large-scale construction machinery and equipment need to be transported, and the 4-axle skeleton trailer can provide sufficient carrying area and strength.
| Main Beam |
Vertical plate 8mm, upper wing plate 14mm, lower wing plate 16mm |
|---|---|
| Main Beam Style |
Straight beam |
| Through Beam |
High-strength bending parts |
| Air Chamber |
8 sets |
| Suspended Beam |
Mechanical suspension |
| Leaf Spring |
10 pieces, standard type |
| Axle Model/Quantity |
13T*4 sets |
| Tires |
12R22.5*16sets |
| Toolbox |
1 standard type |
| Container Locking Device |
12 sets |
| Landing Gear |
Single action, 28T |
| Kingpin |
Approximately 3.5 inches |
| Brake Valve Specification |
Three-axle synchronization |
| Overall Dimensions |
12.45m*2.55m*1.5m |

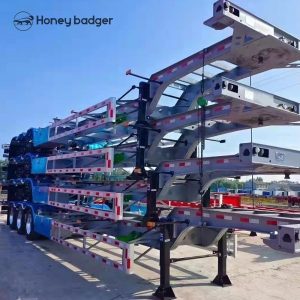

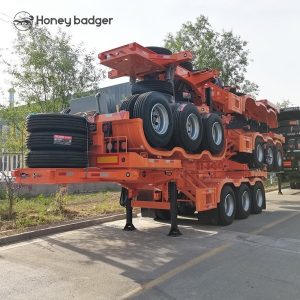

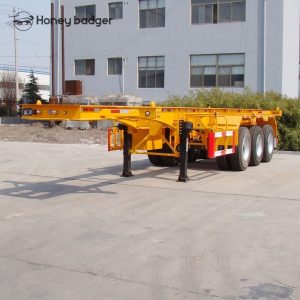

Skeleton semi-trailer is a semi-trailer specially designed for transporting containers. The main feature of this semi-trailer is that its structure is similar to a skeleton, without a flatbed or cargo platform, primarily consisting of a steel framework to support and secure containers. Skeleton semi-trailers are widely used in ports, docks, freight stations, and logistics centers for long-distance freight and container transportation.
Advantages
1. Lightweight: Due to its simple structure, the skeletal semi-trailer is lightweight, which helps increase the vehicle’s load capacity and fuel efficiency.
2. Simple Structure: Its straightforward design makes maintenance easy, reducing repair and upkeep costs.
3. High Flexibility: Capable of accommodating different sizes and types of containers, offering a wide range of applications and strong adaptability.
4. Cost-Effective: Low production costs and long service life effectively reduce transportation and operational expenses.
5. Easy Loading and Unloading: The open structure design facilitates more convenient loading and unloading of containers, enhancing work efficiency.
6. High Safety: Reasonable design can ensure the stability and safety of containers during transportation.
