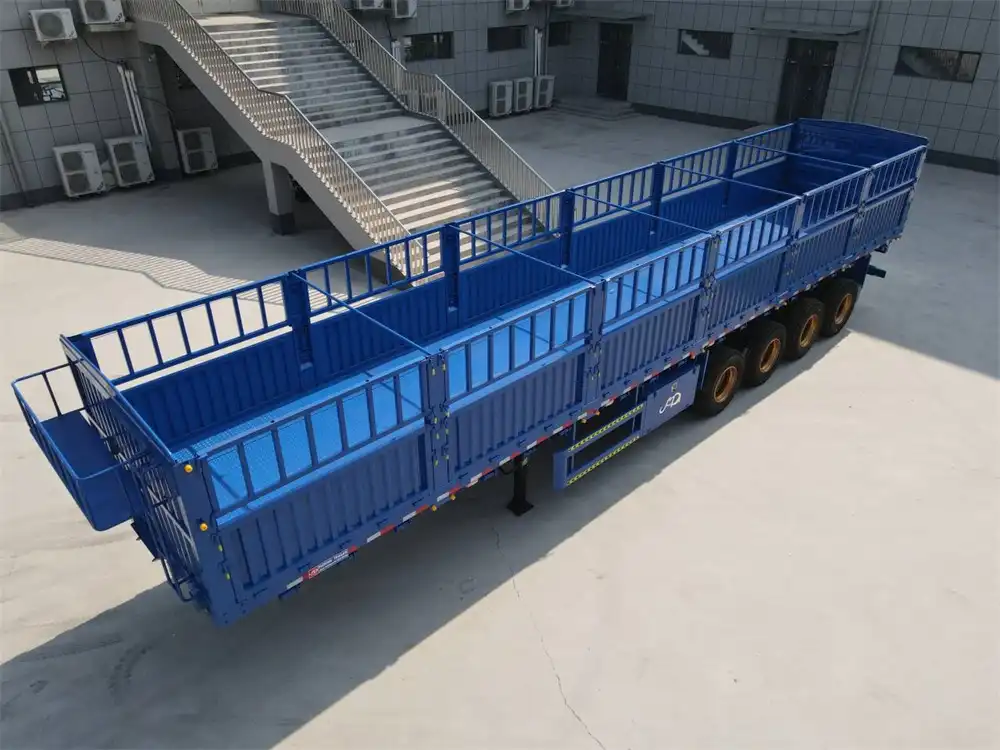

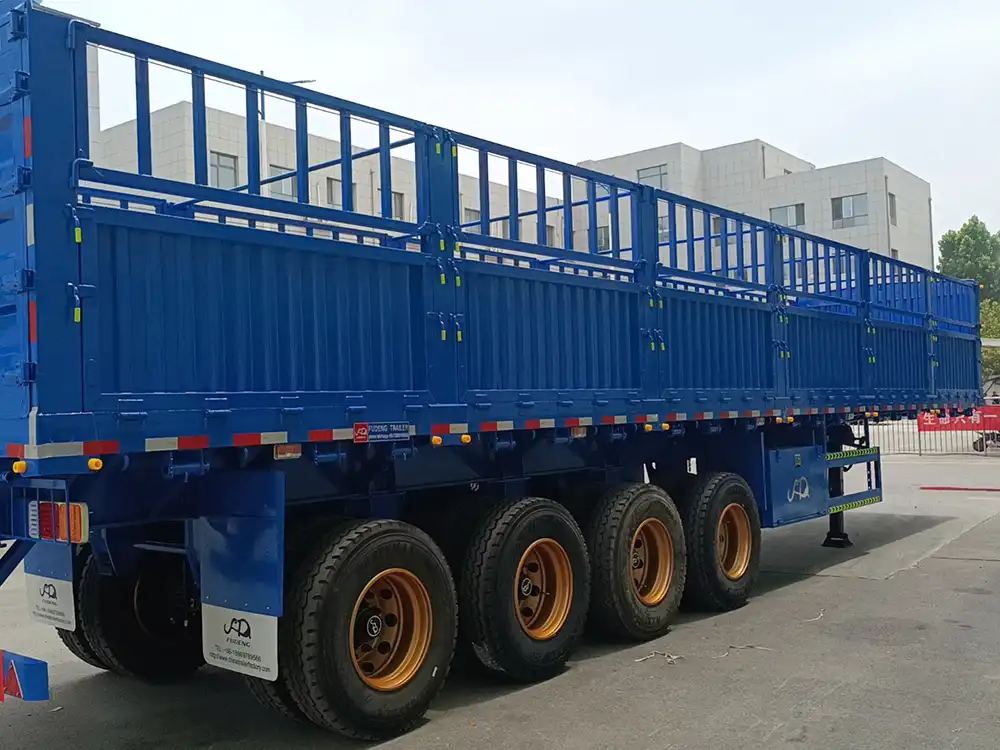

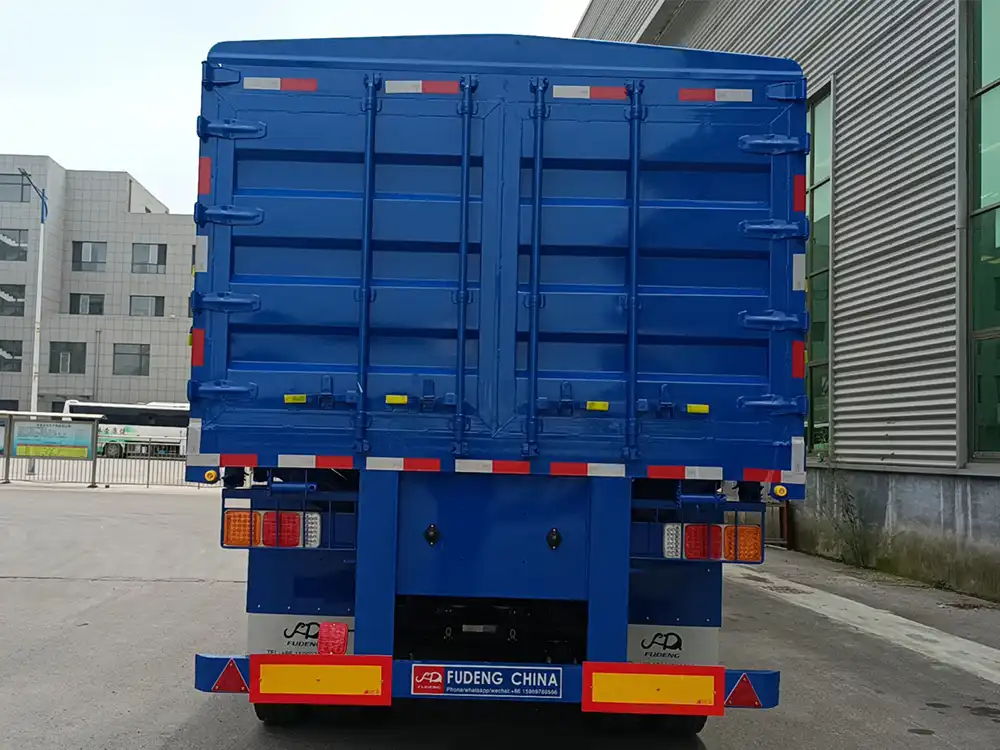

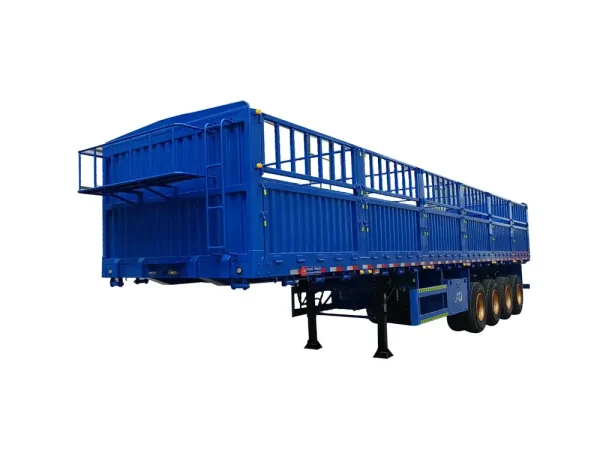

Fence cargo trailer, this is one of the popular products of FUDENG. The length, width and height of this 4 axles bulk cargo fence trailer can be customized according to actual needs.
The barn semi-trailer is a multi-functional vehicle designed for cargo transportation, mainly used for medium and long-distance transportation. Its unique barn structure combines high strength, stability and large capacity, and is widely used in the transportation of various goods, such as agricultural products, livestock, building materials, etc.
#image_770164019 {
width: 100%;
}
The barn is welded with high-strength steel pipes, and the surface is treated with anti-corrosion, which is both beautiful and durable. The height and spacing of the barn can be customized according to the characteristics of the goods, which not only ensures the safe fixation of the goods, but also facilitates loading and unloading operations and improves transportation efficiency.
According to customer needs, barn semi-trailers provide a variety of specifications and configuration options to meet different transportation needs. Whether it is ordinary goods or special materials, we can provide you with a suitable transportation plan.
#image_1059232581 {
width: 100%;
}
#image_1590287546 {
width: 100%;
}
3 AXLES Fence Cargo Trailer Specifications
| Dimension | 12.5m×2.75m×3.2m(customized) |
| Payload | 80T |
| Fence height | 1m+0.6m/Customized |
| Twistlock | 12 units locks for 20ft and 40ft container |
| Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. |
| Frame Floor | The Thickness is 4mm pattern |
| Axle | 4 axles, 16T FD brand heavy duty |
| Landing Gear | FUWA brand 28T lifting capacity with two speed |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical/Air suspension(customized) |
| Leaf Spring | 90mm(W)*16mm(T)*10 Layer |
| Pneumatic Braking System | Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve |
| Tire | 12R22.5 *12pcs(optional) |
| Accessories | Two standard tool box |
| Color | White, Red, Yellow, Blue(Optional) |
