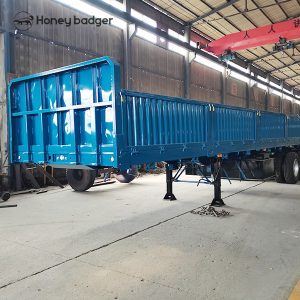

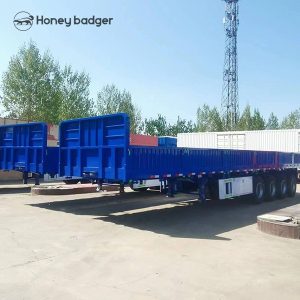

The 40 Foot Side Board Trailer provides a large loading space, which is suitable for transporting large mechanical equipment parts, rolled steel, cables, etc. It can be used in the construction industry to transport batches of building materials, such as long steel beams, large quantities of pipes, etc.
Place of Origin: China
Brand Name: Honey Badger
Min. Order Qty: 1 Unit
Model: HB-Sidewall Cargo Semi Trailer
Shipment Term: Container Ship, Bulk Cargo Ship, RORO Ship.
Delivery Period: 15-20 workdays.
| Air Chamber |
6 sets |
|---|---|
| Axle Model/Quantity |
13T*3 sets |
| Bottom Plate Type/Thickness |
Patterned, 2.0mm |
| Brake Valve Specification |
Three-axle synchronization |
| Container Locking Device |
12 sets |
| Dimensions of Cargo Box |
12.3m*2.4m*0.8m |
| Kingpin |
Approximately 3.5 inches |
| Landing Gear |
Single action, 28T |
| Leaf Spring |
10 pieces, standard type |
| Main Beam |
Vertical plate 8mm, upper wing plate 14mm, lower wing plate 16mm |
| Main Beam Style |
Straight beam |
| Overall Dimensions |
12.5m*2.5m*2.7m |
| Side Beam |
140# Channel steel |
| Sideboard Height |
0.8m |
| Sideboard Type/Thickness |
Flat sideboard 1.5mm |
| Suspended Beam |
Mechanical suspension |
| Through Beam |
High-strength bending parts |
| Rope Tightening Device |
Standard |
| Tires |
12R22.5*12sets |
| Toolbox |
1 standard type |

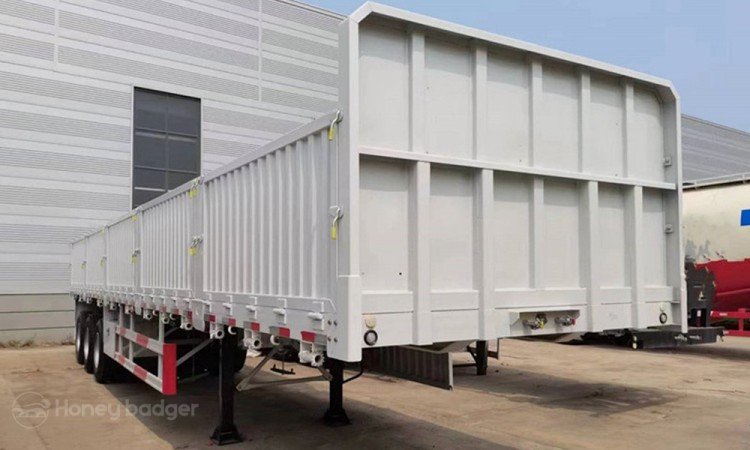

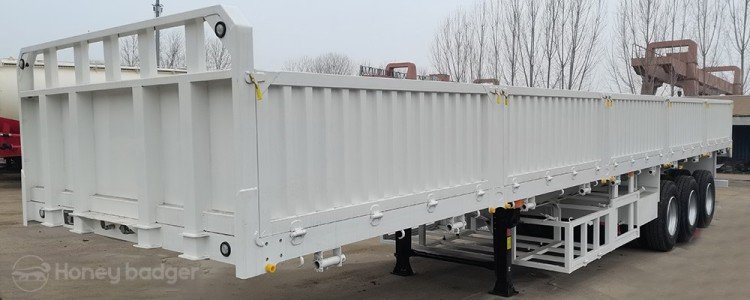

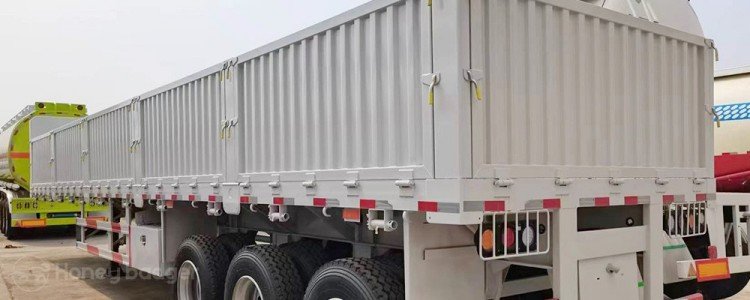

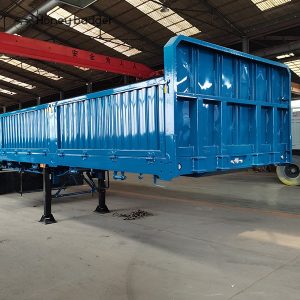

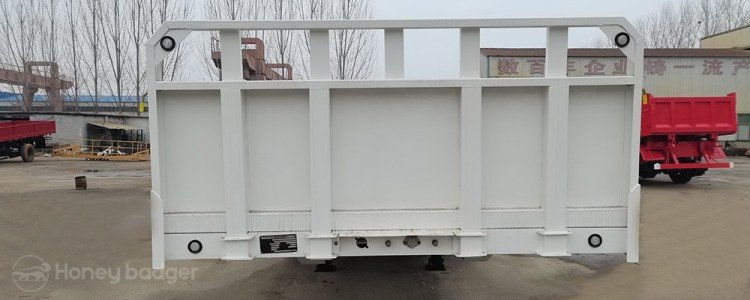

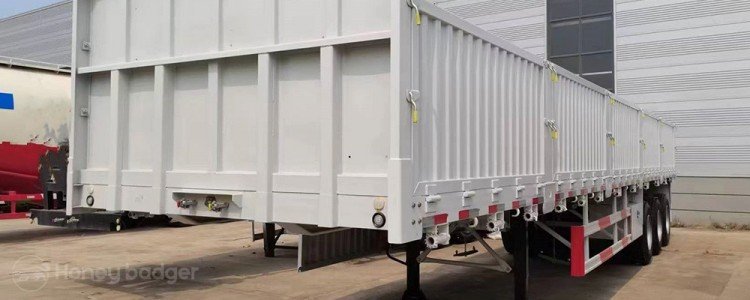

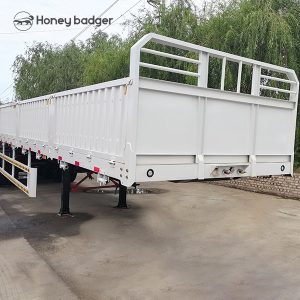

The sidewall semi-trailer is a semi-trailer with a sidewall structure for the cargo loading part. It is widely used and mainly suitable for medium to heavy and bulk cargo transportation over medium to long distances. Its strong adaptability has made it the preferred choice for medium and long-distance freight vehicles.
Features
1. Sturdy Structure: The sidewall semi-trailer is made of high-strength steel, ensuring adequate strength and durability during transportation.
2. Easy Loading and Unloading: Due to the sidewall design, goods can be conveniently loaded and unloaded from the side, suitable for transporting various types of cargo, including bulk and packaged goods.
3. Versatility: The sidewalls can be removed as needed to accommodate goods of different sizes and shapes, providing greater flexibility.
4. Good Ventilation: The sidewall design offers excellent ventilation, beneficial for transporting goods that require ventilation, such as agricultural products.
5. High Safety: The sidewalls effectively prevent goods from sliding or shifting during transportation, increasing the safety of transportation.
6. Easy Maintenance: Due to its relatively simple structure, the maintenance and repair of the sidewall semi-trailer are relatively easy.
7. Lightweight: The sidewall semi-trailer is relatively lightweight, which helps improve transportation efficiency and fuel economy.
