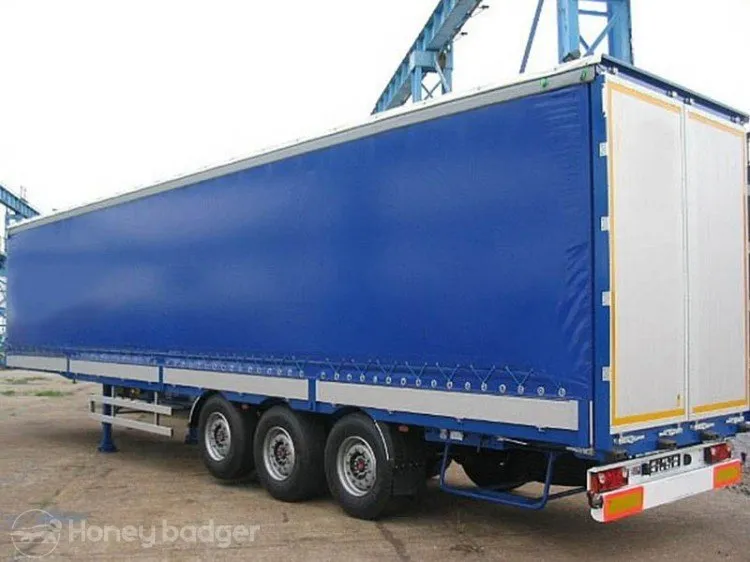

40-foot curtain-side trailers usually have a rated load capacity of 20 to 35 tons. The load capacity varies depending on the specific configuration, design standards, manufacturer, and applicable regulations of the vehicle. It can be customized on demand.
Place of Origin: China
Brand Name: Honey Badger
Min. Order Qty: 1 Unit
Model: HB-Curtain Side Semi Trailer
Shipment Term: Bulk Cargo Ship, RORO Ship.
Delivery Period: 15-20 workdays.
| Air Chamber |
6 sets |
|---|---|
| Axle Model/Quantity |
13T*3 sets |
| Back Door |
Fully enclosed with a double-door design, the doors can open outward from the center |
| Bottom Plate Type/Thickness |
Patterned, 2.0mm |
| Brake Valve Specification |
Three-axle synchronization |
| Dimensions of Cargo Box |
12.3m*2.5m*2.4m |
| Kingpin |
Approximately 3.5 inches |
| Landing Gear |
Single action, 28T |
| Leaf Spring |
10 pieces, standard type |
| Main Beam |
Vertical plate 8mm, upper wing plate 14mm, lower wing plate 16mm |
| Main Beam Style |
Straight beam |
| Overall Dimensions |
12.5m*2.5m*4m |
| Side Beam |
140# High-strength bending parts |
| Side Tarp |
Manual tarp with top tarp |
| Suspended Beam |
Mechanical suspension |
| Through Beam |
High-strength bending parts |
| Tightening Rope |
Standard |
| Tires |
12R22.5*12sets |
| Toolbox |
1 standard type |

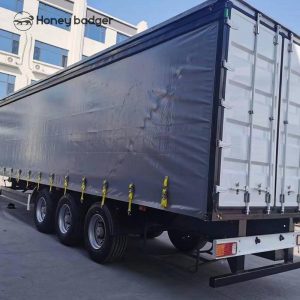

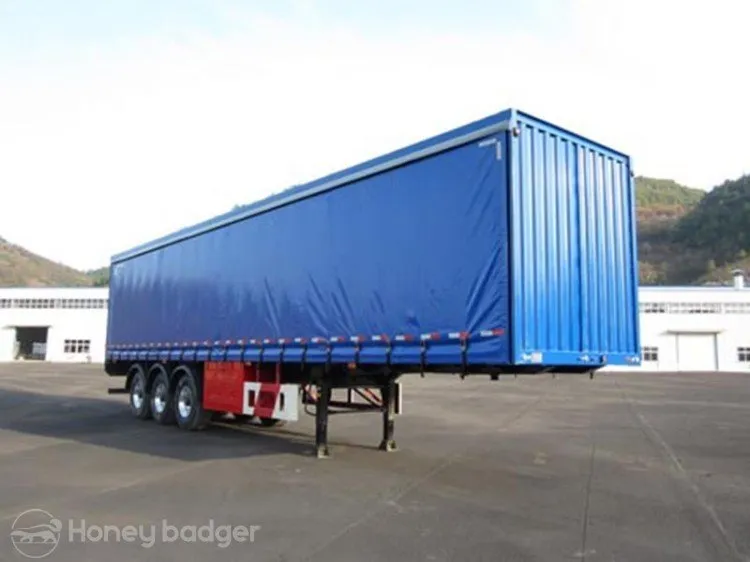

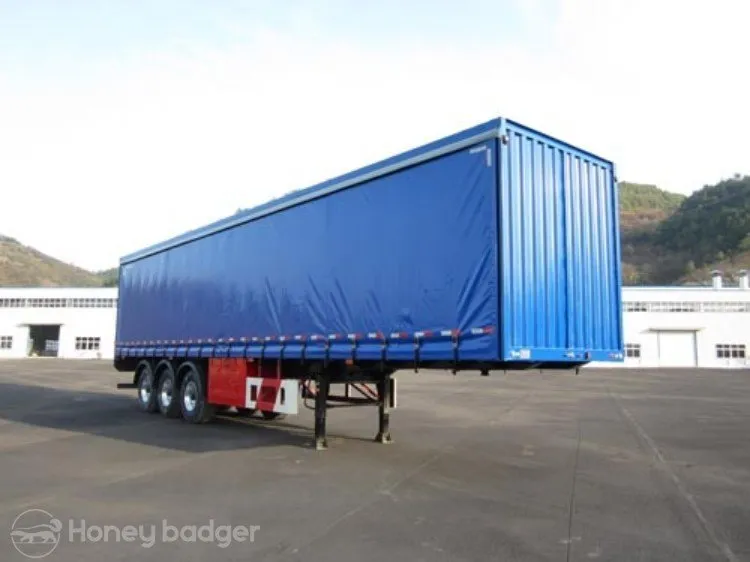

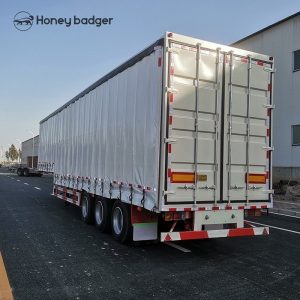

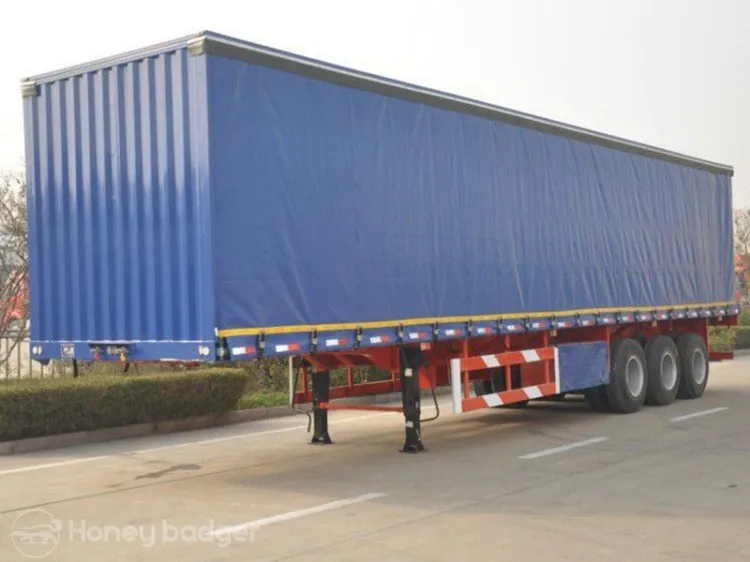

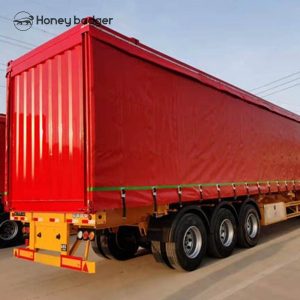

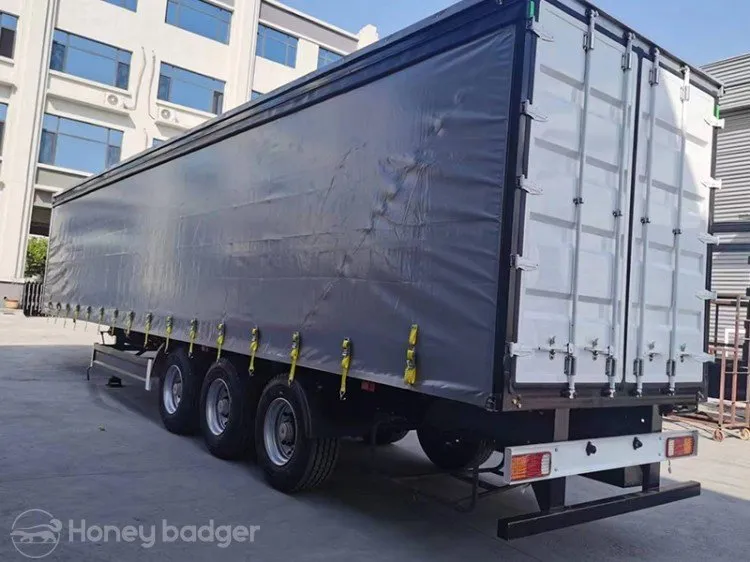

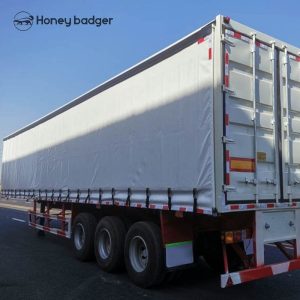

The curtain side semi-trailer is a transport vehicle equipped with sliding curtains on the side, which is convenient for quick loading and unloading of goods. It is designed to transport a variety of goods, such as pallets, building materials, etc. It has the characteristics of efficient loading and unloading and strong adaptability. It can be customized according to needs and is widely used in the fields of logistics and industrial transportation.
Advantages
1. Efficient Loading and Unloading
The curtain design allows for quick loading and unloading from the sides, rear, and top, saving time and labor.
2. High Versatility
Suitable for transporting various goods, such as pallets, construction materials, and bulk items, with no restrictions on cargo shape.
3. Lightweight and High Load Capacity
Features a lightweight structure to reduce tare weight and increase payload.
4. Durable and Weatherproof
The curtains are water-resistant, wear-resistant, and tear-resistant, ensuring cargo safety.
5. Flexible Customization
Dimensions, load capacity, and configurations can be customized to meet specific needs.
6. Wide Applications
Commonly used in logistics, express delivery, food and beverage transportation, and industrial equipment hauling.
Applications
1. Logistics and Express Delivery
Ideal for multi-stop, high-frequency deliveries with quick loading and unloading to save time and increase efficiency.
2. Food and Beverage Transport
Suitable for transporting bottled water, beverages, and other food items, ensuring the cargo stays dry and secure.
3. Construction Materials and Furniture Transport
Easily handles steel, timber, large furniture, and other irregular or oversized goods.
4. Industrial Equipment and Machinery Transport
Used for moving heavy machinery, equipment, and large components, with forklift-friendly access.
5. Retail and Wholesale Supply Chains
Supports the transport of consumer goods to supermarkets and wholesalers, with multi-location delivery capabilities.
6. Agricultural and Livestock Transport
Suitable for carrying farming tools, fertilizers, animal feed, and other agricultural products for various needs.
7. Exhibition and Event Equipment Transport
Ideal for moving exhibits, stage equipment, and other materials for temporary projects or events.
