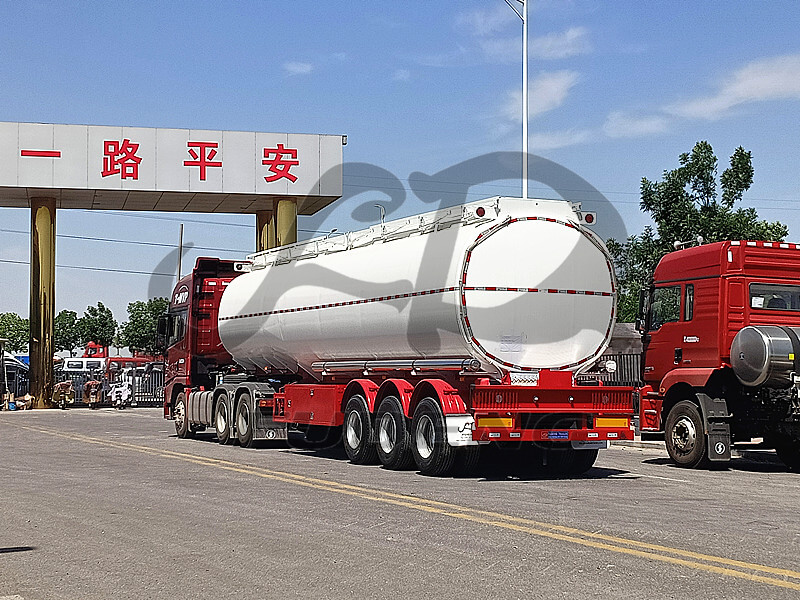

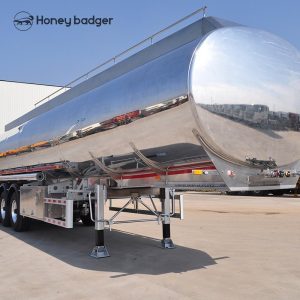

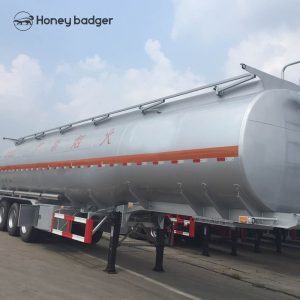

Aluminium Tanker Semi trailer is a special vehicle used to transport liquid or gaseous goods. It is made of aluminum alloy and has the characteristics of light weight, corrosion resistance and high strength. It is widely used in chemical, food, petroleum and other industries, and can transport various types of goods efficiently and safely. Honey badger can provide customized services according to your needs.
Place of Origin: China
Brand Name: Honey Badger
Min. Order Qty: 1 Unit
Model: HB-Fuel Tanker Semi Trailer
Shipment Term: Container Ship, Bulk Cargo Ship, RORO Ship.
Delivery Period: 15-20 workdays.
| ABS |
Ruili Kormee |
|---|---|
| Accessories |
1 toolbox, 1 spare tire rack, 1 axle cap, 2 fire extinguishers. |
| Axle |
FUWA brand 13T, 3sets |
| Baffle Plate |
5mm aluminum alloy |
| Bottom Valve |
4” bottom valve, 1 sets |
| Brake Valve Specification |
WABCO brake valve, 6 dual air chambers, 40L air tank. |
| Compartment |
1 |
| Discharge Pipe |
Standard 4” discharge pipe, 2 pieces |

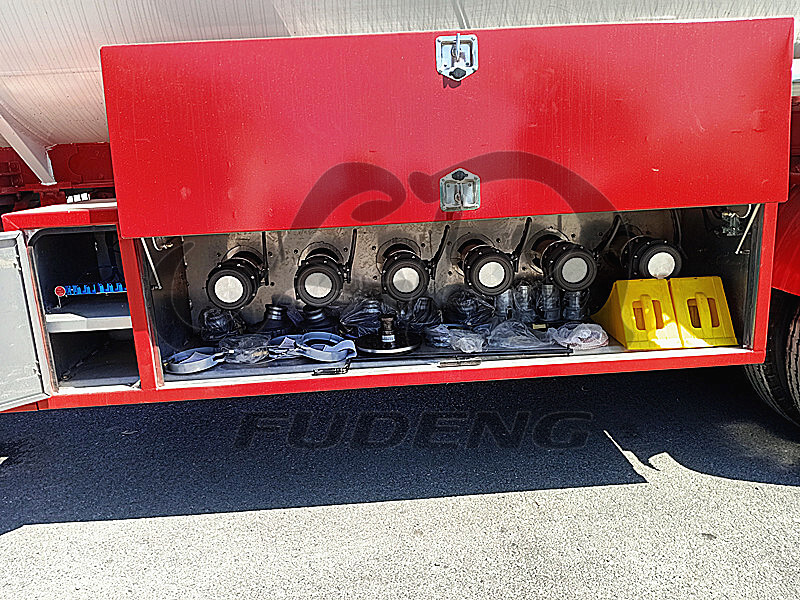

| Discharge Valve |
4” API valve, 3 sets |
| Electrical System |
Export waterproof wiring, 24V, 7-hole socket, 6-core wiring, LED lights. |
| Insulation Layer |
Optional |
| King Pin |
50# pin |

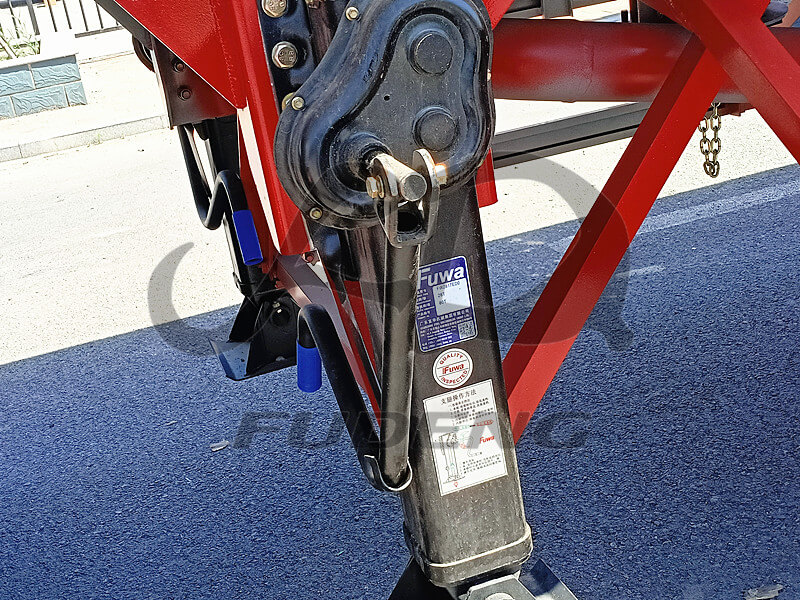

| Landing Gear |
28T |
| Loading Method |
Top Loading |
| Main Beam |
T-beam, high-strength steel |
| Manhole Cover |
DN500(20”) Aluminum manhole cover, 3 sets |
| Overall Size |
11800*2500*3750mm |
| Overflow Prevention System |
included |

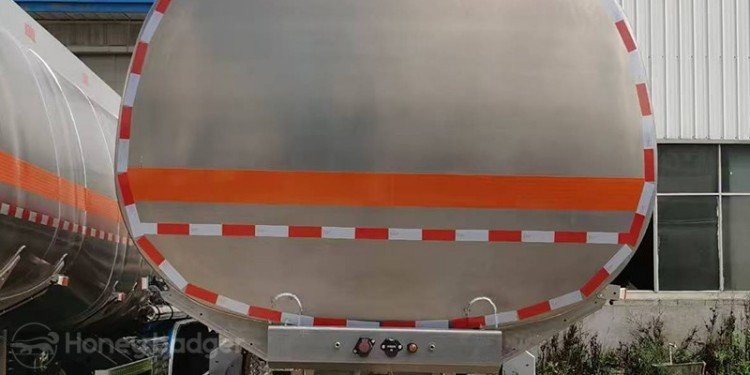

| Seal Head Material |
7mm aluminum alloy |
| Spray Painting |
Customizable |
| Suspension |
3-axle mechanical suspension |
| Tank Body Materia |
6mm aluminum alloy |

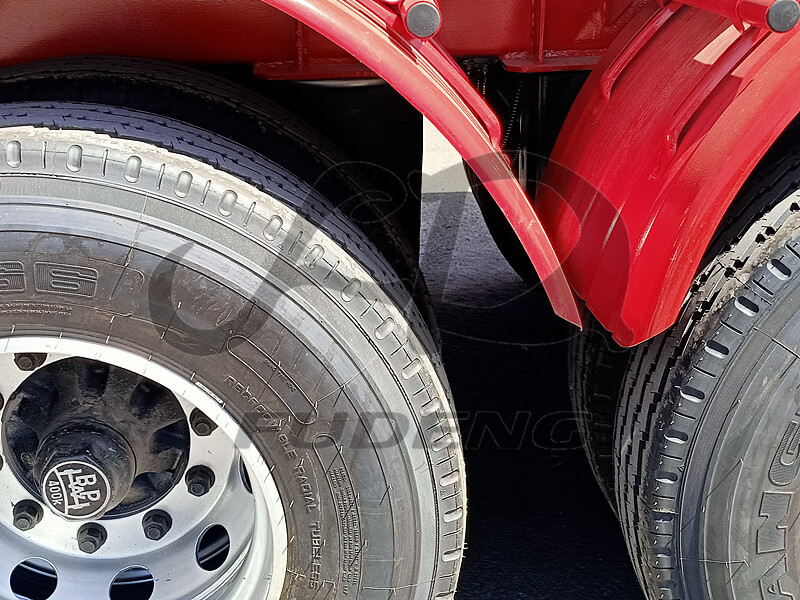

| Tire |
Traingle brand 12.00R22.5,12units |
| Transported Medium |
Diesel, gasoline and other liquids. |
| Volume |
42000L |

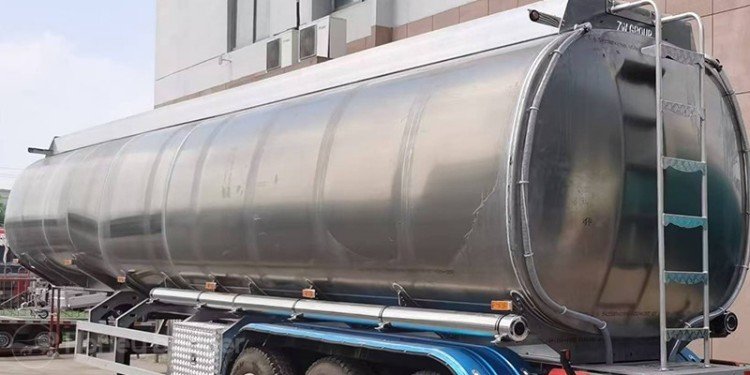

| Walkway |
Ladder on the back. On top of tank, 3mm thick steel perforated, anti-slip walkway will be provided within the manual operating guardrail. |
| Wheel Rim |
Standard, 12 pieces |
A fuel tanker semi-trailer is specifically designed for transporting liquid cargo. It is commonly used for long-distance transport of petroleum products, chemicals, food-grade liquids (such as milk and edible oil), and other liquid materials. Its design aims to ensure the safe and efficient transport of liquids while meeting the storage and transport requirements of various liquids.
Advantages
1. High Safety
Leak Prevention Design: Features a leak-proof system to prevent liquid spillage during transportation.Emergency Discharge System: Equipped with emergency discharge valves to quickly release liquid in case of an emergency, reducing accident risk.Static Grounding: Static grounding devices prevent static electricity buildup, lowering fire and explosion risks, especially for flammable liquids.
2. High Efficiency
Fast Loading and Unloading: Utilizes efficient pumps and pipeline systems for quick and effective liquid handling, minimizing wait times.Large Capacity: Typically has a large capacity for transporting significant quantities of liquid, enhancing transport efficiency.
3. Temperature Control
Temperature Maintenance: May include insulation and heating systems for liquids requiring constant temperature (e.g., food-grade liquids and certain chemicals).
4. Good Stability
Anti-Sway Design: Internal baffles and partitions reduce liquid movement during transport, improving vehicle stability and handling.Stable Chassis and Suspension: Designed for stability, adapting to various road conditions for smooth driving.
5. Durability
Corrosion-Resistant Materials: Constructed from high-strength, corrosion-resistant materials (like aluminum alloy or stainless steel) for enhanced durability and longevity.Robust Structure: Designed for stability and reliability over extended use.
6. Versatility
Multi-Liquid Transport: Suitable for transporting a range of liquids, including fuels, chemicals, and food-grade liquids, to meet various transport needs.Customizable Configurations: Can be customized with features like temperature control systems and heating devices to meet specific requirements.
7. Cost Efficiency
Reduced Frequent Loading and Unloading: Large capacity reduces the need for frequent loading and unloading, lowering operational costs.Efficient Transport: Enhances transport efficiency and stability, helping to minimize losses during transit.
Applications
1. Petroleum and Chemical Industry
Fuel Transportation: Used to transport various fuels such as gasoline, diesel, and aviation kerosene.
Chemical Transportation: Transport various chemical raw materials and chemicals, such as acids, alkalis, solvents, etc., ensuring safe and reliable delivery from production to usage sites.
2. Food and Beverage Industry
Food-Grade Liquids: For transporting food-grade liquids such as milk, juice, edible oil, and syrup. Tanker semi-trailers often feature linings or special treatments to ensure the hygiene and safety of the liquids.
Beverage Transport: For transporting various beverages, including soft drinks and alcoholic drinks.
3. Agriculture
Liquid Fertilizers: For transporting liquid fertilizers, enhancing agricultural efficiency.
Pesticides: For transporting various liquid pesticides, ensuring effective application to fields.
4. Pharmaceutical Industry
harmaceutical Raw Materials: For transporting liquid pharmaceutical ingredients and agents, particularly those requiring special temperature control and handling.
5. Construction Industry
Concrete Additives: For transporting liquid concrete additives or admixtures to improve concrete performance.
Construction Materials: For transporting other liquid construction materials, such as adhesives and coatings.
6. Environmental Protection Industry
Waste Liquid Handling: For transporting industrial waste liquids or liquid waste for environmentally compliant disposal.
