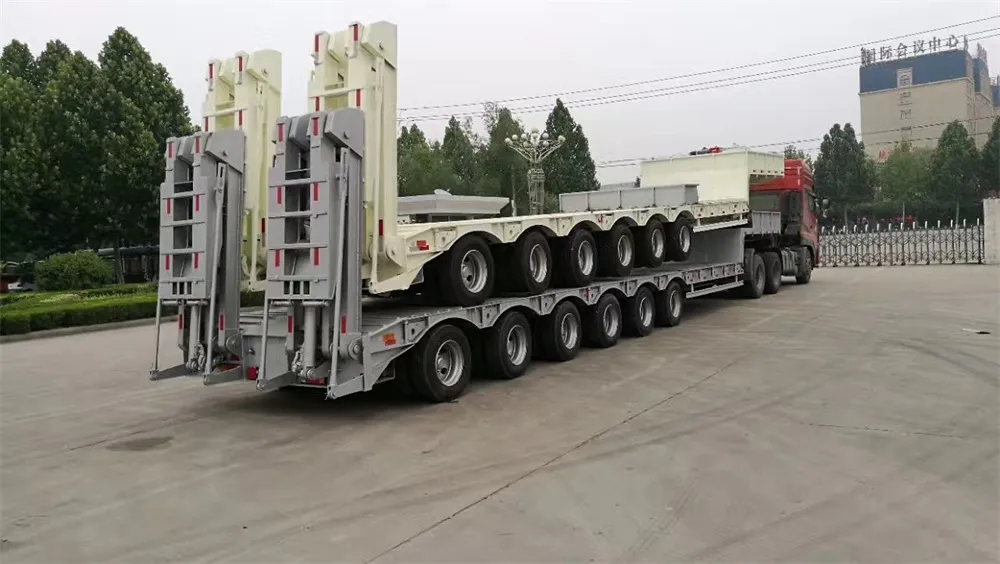

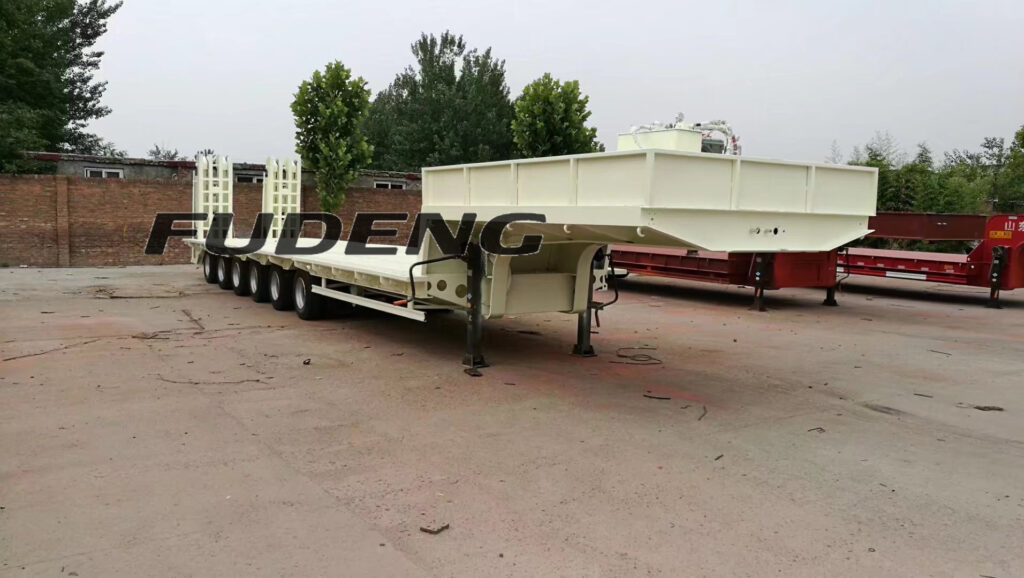

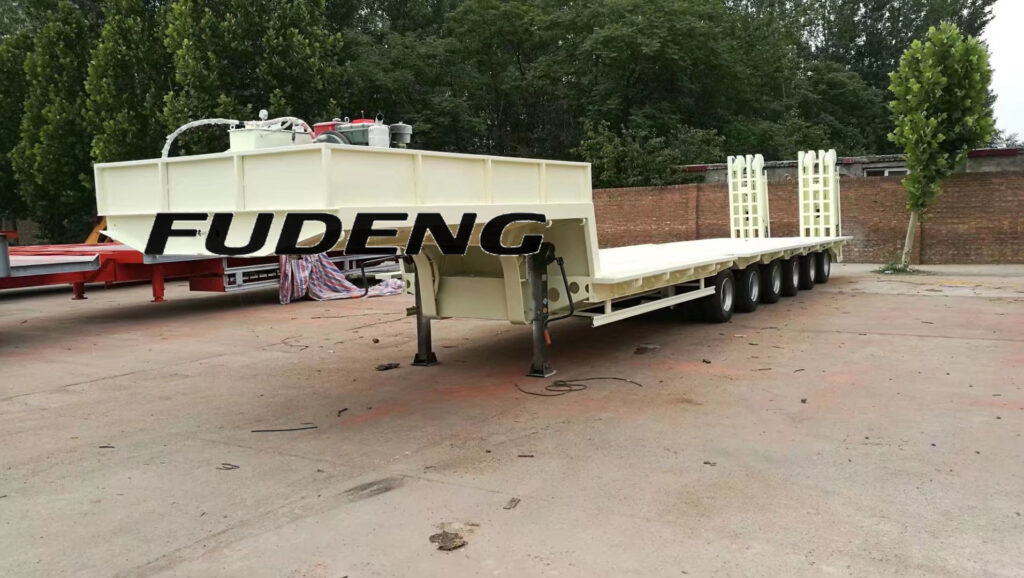

Fudeng Automotive has been focusing on the manufacture of heavy-duty low-profile panels for more than 10 years. Customers need to transport super-heavy and heterosexual electromechanical equipment, bridges, etc., requiring axles that can be turned to facilitate cornering.. 6 axles large capacity out of gauge cargo transport low loader trailer with steering hydraulic suspension.
#image_968160835 {
width: 100%;
}
#image_273898563 {
width: 100%;
}
| Steerable Low Bed Semi Trailer Specifications | |
| Dimension: | 18500mm*3000mm*2200mm (Platform) |
| Load Capacity: | 100-150Tons |
| Power Station | Diesel Engine Optional |
| Founction: | Heavy abnormal construction machinery etc |
| Main Beam: | High tension carbon steel |
| Painting: | Complete chassis sand blasting to clean rust,1 coat of anti-corrosive prime,2coats of final paints |
| Axle: | Mannual / Hydraulic Steering Axles |
| Suspension: | Hydraulic Suspension, Three-Dotted Supporting |
| King Pin: | 2” or 3.5” |
| Tire: | 215/75R17.5 or 7.5R15 |
| Brake System: | WABCO, ABS Optional |
| Electrial System: | 24V; 7 ways receptacle; LED lamps |
| Accessories: | One tool box, one spare tire carrier |
| Colour and Marking: | Comply with the customer’s requirement |
