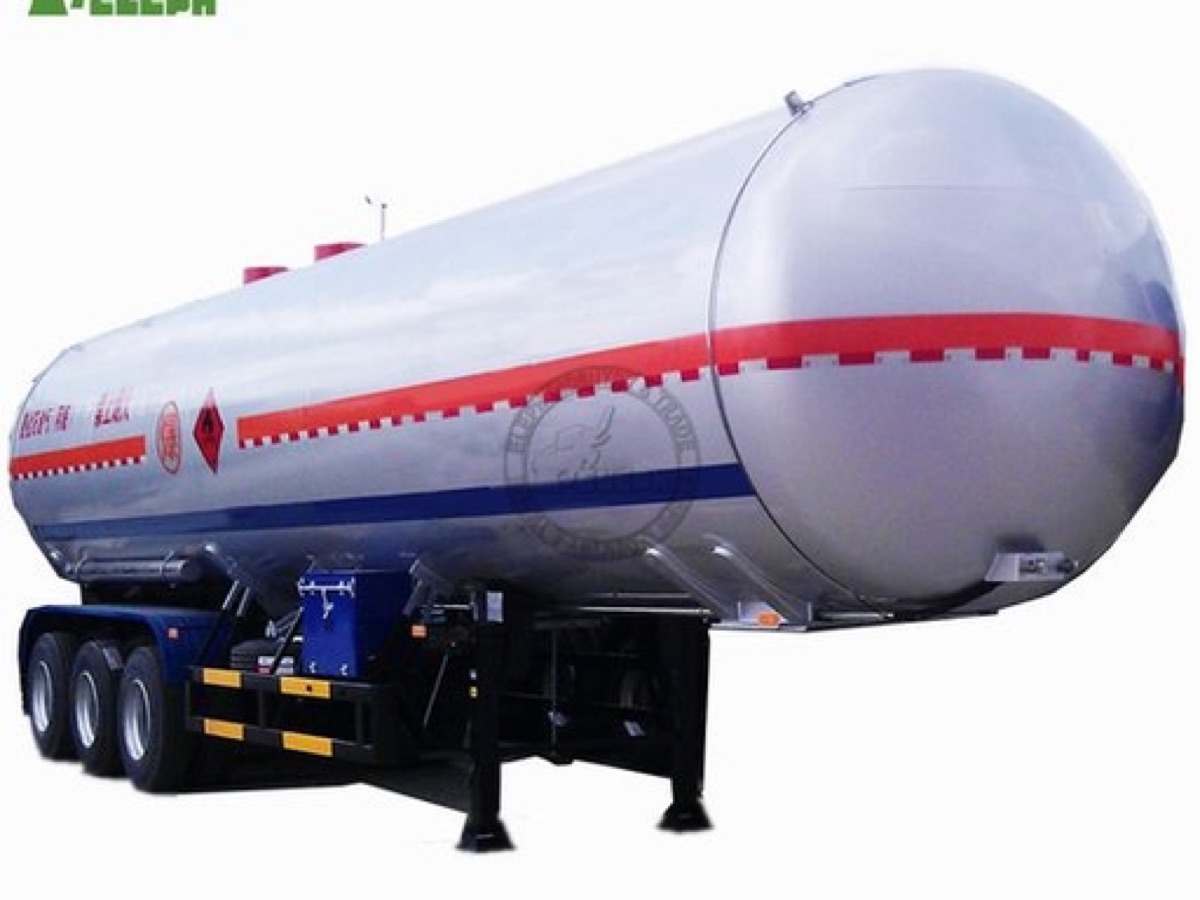

This 3-axle LPG (liquefied petroleum gas) semi-trailer is a high-pressure cylindrical pressure vessel specially built for the safe transportation of liquefied petroleum gas.
The tank is constructed from Q345R pressure-vessel-grade steel with an 8–10mm shell and 10–12mm heads, subjected to 100% X-ray inspection and hydraulic and pneumatic leak tests. The design pressure is 1.77MPa with a working pressure of 1.61MPa.
Fitted with the full set of high-pressure safety components — dual safety valves, emergency shut-off valves, level gauge, pressure gauge, temperature gauge, static grounding reel, two dry powder fire extinguishers, and an explosion-proof valve box — the trailer meets the highest safety standards for LPG transport.
Valves can be domestic, or the customer can select imported REGO/Blackmer pumps with flow meters for batch loading and unloading. The trailer rides on 3×13-ton FUWA/BPW heavy-duty axles with a 3.5-inch (90#) kingpin; reinforced leaf spring suspension is preferred for African rough roads, with Rob-Spring single-point for mining areas and air suspension for good-road countries.
Key Features Summary
- High-pressure cylindrical pressure vessel, Q345R pressure-vessel-grade steel
- 8–10mm shell, 10–12mm heads; 100% X-ray inspection; hydraulic and pneumatic tested
- Design pressure 1.77MPa, working pressure 1.61MPa
- Dual safety valves, emergency shut-off, level/pressure/temperature gauges
- Static grounding reel, 2 dry powder extinguishers, explosion-proof valve box
- Domestic valves or imported REGO / Blackmer pump + flow meter
- 3.5-inch (90#) kingpin; 3×13-ton FUWA/BPW heavy-duty axles
- Reinforced leaf / Rob-Spring / air suspension options
| Type | LPG Semi-Trailer |
| Axles | 3 axles, 3×13-ton FUWA / BPW heavy-duty |
| Tank | High-pressure cylindrical pressure vessel, Q345R pressure-vessel-grade steel |
| Shell / Heads | 8–10mm shell, 10–12mm heads; 100% X-ray inspection; hydraulic and pneumatic tested |
| Pressure | Design 1.77MPa, working 1.61MPa |
| Safety | Dual safety valves, emergency shut-off, level gauge, pressure gauge, temperature gauge, static grounding reel, 2 dry powder extinguishers, explosion-proof valve box |
| Valves / Pump | Domestic valves, or imported REGO / Blackmer pump + flow meter |
| Kingpin | 3.5-inch (90#) |
| Suspension | Reinforced leaf spring (Africa rough roads), Rob-Spring single-point (mining), or air suspension (good roads) |
| Color | Optional |
