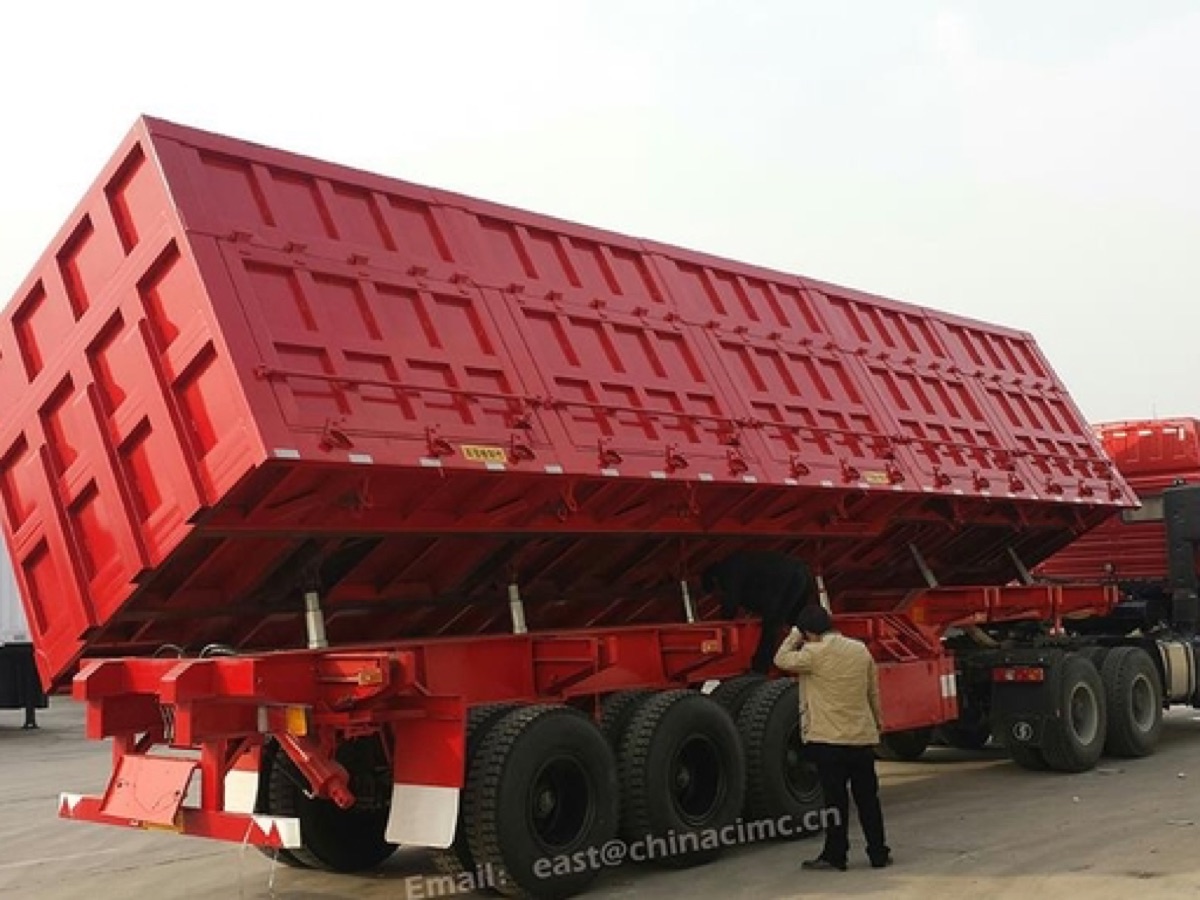

This 3-axle side dump semi-trailer is purpose-built for bulk material transport on African mining and construction sites. The horizontal side-push hydraulic system allows dumping to either side, with the opening side door synchronized with the discharge.
The Africa export heavy-duty body features a 10mm floor and 8mm high-strength wear-resistant steel sides, designed to survive rough mine roads and heavy impact loading.
The hydraulic system uses multiple groups of synchronized horizontal side-push cylinders, which can be configured for left-side, right-side, or dual-direction dumping. Customers prefer the original HYVA hydraulic kit, which has reliable local parts availability. The side-opening hydraulic automatic door synchronizes with discharge.
Fitted with a 3.5-inch (90#) bolted kingpin (some old fleets use 2-inch/50#), 28T JOST dual-speed legs, reinforced leaf spring or Rob-Spring single-point suspension (the preferred choice for African mine roads), and 3×13–16-ton FUWA heavy-duty axles, the trailer delivers outstanding durability.
Key Features Summary
- Side dumping to left, right, or both directions — flexible unloading
- Multiple synchronized horizontal side-push hydraulic cylinders
- Original HYVA hydraulic kit — reliable parts availability
- Side-opening hydraulic automatic door synchronized with discharge
- Africa heavy-duty: 10mm floor, 8mm high-strength wear-resistant steel sides
- 3.5-inch (90#) bolted kingpin and 28T JOST dual-speed legs
- Rob-Spring single-point suspension option for African mine roads
- 3×13–16-ton FUWA heavy-duty axles; 47 CBM; 40–45 ton payload
| Type | Side Dump Semi-Trailer |
| Axles | 3 axles, 3×13–16-ton FUWA heavy-duty |
| Kingpin | 3.5-inch (90#) bolted (some old fleets 2-inch/50#) |
| Legs | 28T JOST dual-speed heavy-duty legs |
| Suspension | Reinforced leaf spring or Rob-Spring single-point (African mine roads) |
| Body | Africa heavy-duty: floor 10mm, side 8mm high-strength wear-resistant steel |
| Hydraulic | Multiple synchronized horizontal side-push cylinders, left/right dual-direction; original HYVA kit preferred |
| Door | Side-opening hydraulic automatic door, synchronized with discharge |
| Brake | Dual-circuit air brake, WABCO valves; ABS optional |
| Tire | 12.00R20 mining tires |
| External Dimensions (L×W×H) | 12500 × 2550 × 2100 mm |
| Internal Dimensions (L×W×H) | 12100 × 2450 × 1600 mm |
| Curb Weight | 11.8–12.3 tons |
| Payload | 40–45 tons |
| Volume | 47 CBM |
| Flat-Rack Billing | 68–72 CBM |
